Battery Energiser

From $241.08 - $273.29

In stock at our Sunshine Branch Only.

If Sunshine is not your preferred pick up location please allow us a few days to get the product to your preferred Robot Branch.



Clear
Product Code: N/A
Price Unit:
Product Code: N/A Category: Tags: ,

Description

FEATURES & BENEFITS

Battery operated
Operates off 12 V lead-acid batteries (not included). Battery saving mode maximizes battery life.

Low impedance energizer
Designed to deliver power to the end of the fence even under heavy load e.g. foliage, undergrowth.

Large enclosure
Robust and rugged professional design.

Low maintenance design
Simple ‘plug and play’ operation ensures successful installation even for inexperienced users.

LED indicator
LED indicates pulses when energizer is working.

Robust covered knob design
Protects user from terminals and enables easy, safe installation and good connection of wires onto the energizer.

Multiple mounting options
Energizer is able to be simply mounted on the wall, wood post or steel post.

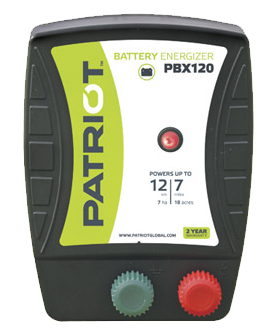

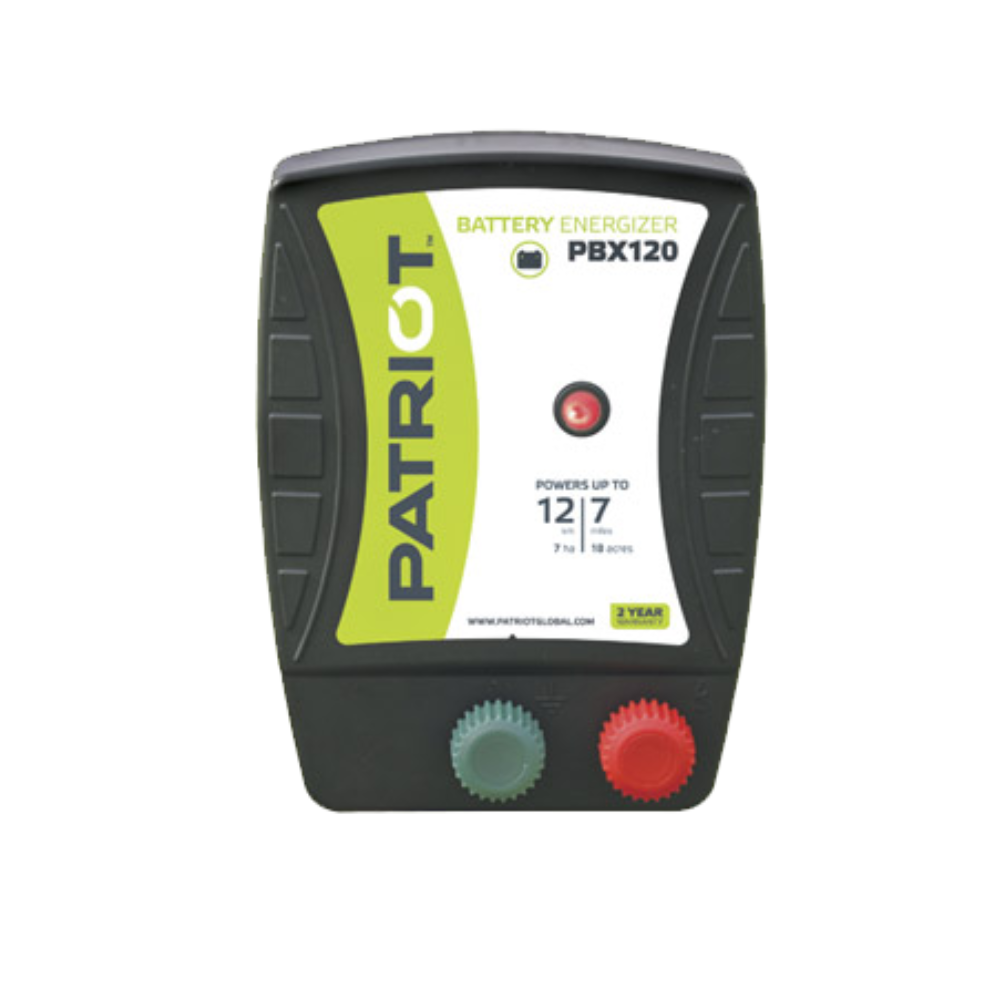

PBX120  – Suitable for farms with small numbers of livestock.

TECHNICAL INFORMATION

DISTANCE RANGE (kilometers)
12 km
DISTANCE RANGE (hectares)
7 ha
PEAK OUTPUT ENERGY (UP TO)
1.2 J
PEAK STORED ENERGY (UP TO)
1.7 J
OUTPUT VOLTAGE @ 100 Ω
2.0 kV
OUTPUT VOLTAGE @ 500 Ω
5.5 kV
OUTPUT VOLTAGE @ 1,000 Ω
7.2 kV
POWER
12 V

PBX200 – Ideal for medium to large farms with a larger number of livestock.

TECHNICAL INFORMATION

DISTANCE RANGE (kilometers)
20 km
DISTANCE RANGE (hectares)
12 ha
PEAK OUTPUT ENERGY (UP TO)
2.0 J
PEAK STORED ENERGY (UP TO)
2.75 J
OUTPUT VOLTAGE @ 100 Ω
2.1 kV
OUTPUT VOLTAGE @ 500 Ω
6.2 kV
OUTPUT VOLTAGE @ 1,000 Ω
7.7 kV
POWER
12 V
