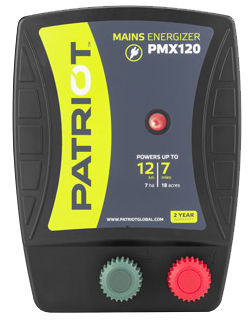

Description
Suited for farms with a small number of livestock.
FEATURES & BENEFITS
Low impedance energizer
Designed to deliver power to the end of the fence even under heavy load e.g. foliage, undergrowth.
Large enclosure
Robust and rugged professional design.
Low maintenance design
Simple ‘plug and play’ operation ensures successful installation even for inexperienced users.
LED Indicator
LED indicator pulses when energizer is working.
Robust covered knob design
Protects user from terminals and enables easy, safe installation and good connection of wires to the energizer.
Multiple mounting options
Energizer is able to be simply mounted on the wall, wood post or steel post.
TECHNICAL INFORMATION
|
DISTANCE RANGE (kilometers)
|
12 km
|
|
DISTANCE RANGE (hectares)
|
7 ha
|
|
PEAK OUTPUT ENERGY (UP TO)
|
1.2 J
|
|
PEAK STORED ENERGY (UP TO)
|
1.7 J
|
|
OUTPUT VOLTAGE @ 100 Ω
|
2.1 kV
|
|
OUTPUT VOLTAGE @ 500 Ω
|
5.5 kV
|
|
OUTPUT VOLTAGE @ 1,000 Ω
|
6.7 kV
|
|
POWER
|
240 V
|
