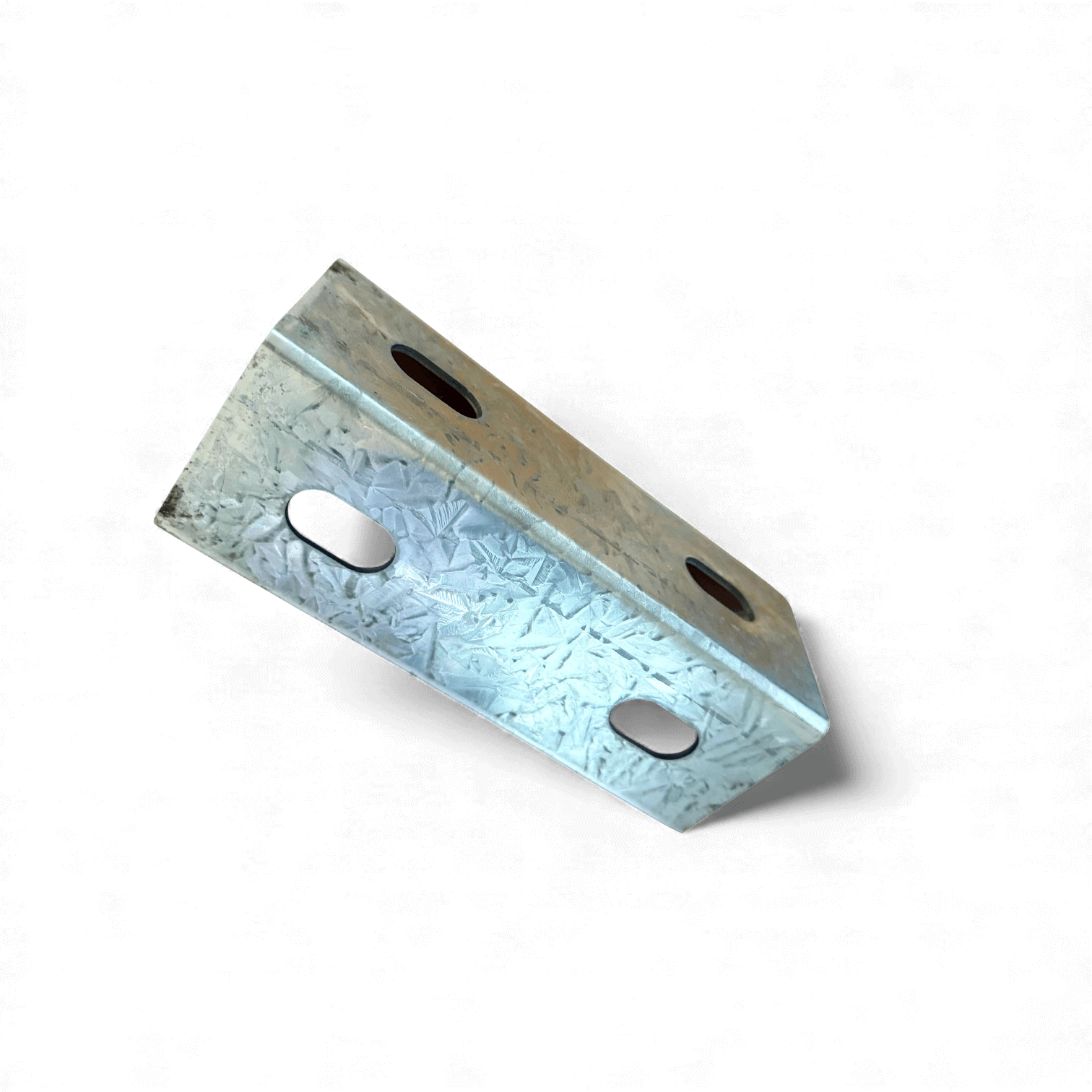

Purlin Angle Connector (AC100 / AC150 / AC200)
Durable, precision-formed connectors for secure purlin joints.
The Purlin Angle Connector is a heavy-duty steel fitting designed to join C-section and Z-section purlins at right angles in roofing and structural framing systems. Available in three common sizes — AC100, AC150, and AC200 — these connectors provide strength, alignment, and reliability for all steel construction applications.
Each connector features pre-drilled holes for quick installation and a corrosion-resistant galvanised or zinc-plated finish, ensuring long-term durability in Australian conditions.
Key Features
-
Heavy-Duty Steel Construction: Engineered for superior strength in purlin and girt connections.
-
Galvanised / Zinc Plated Finish: Protects against rust and corrosion for extended service life.
-
Accurate 90° Angle: Ensures perfect alignment of purlins and structural members.
-
Pre-Drilled for Easy Installation: No on-site drilling required — ready to bolt into place.
-
Versatile Applications: Suitable for sheds, carports, industrial frames, and roofing systems.
Available Sizes
| Model | Overall Size (mm) | Compatible Purlin | Finish | Weight (approx.) |
|---|---|---|---|---|
| AC100 | 100 × 100 × 3.0 | C100 / Z100 | Galvanised or Zinc Plated | 0.35 kg |
| AC150 | 150 × 150 × 3.0 | C150 / Z150 | Galvanised or Zinc Plated | 0.55 kg |
| AC200 | 200 × 200 × 3.0 | C200 / Z200 | Galvanised or Zinc Plated | 0.75 kg |
(Sizes and weights are approximate and may vary slightly based on finish and supplier batch.)
Applications
Ideal for:
-
Purlin-to-purlin and purlin-to-rafter connections
-
Roof trusses and framing junctions
-
Shed and carport construction
-
General steel fabrication and structural work
